LiDAR Annotation for Robotics: Challenges, Workflows, and Tools for 2026

TL;DR: LiDAR annotation for robotics is a different problem than LiDAR annotation for autonomous vehicles, robots operate indoors, at close range, and around humans, fusing LiDAR with arm- or gripper-mounted cameras instead of a single forward-facing view. The core annotation types (3D cuboids, segmentation, free-space classification) stay the same, but robotics adds close-range sparsity, reflective surface noise, and multi-sensor fusion as the hard problems to solve. Getting this right takes a production-grade workflow, ingestion, preprocessing, multi-sensor calibration, annotation, QA, and export, plus purpose-built 3D tooling, since adapted 2D image labeling tools don't hold up at scale.

What Is LiDAR Annotation for Robotics?

What is LiDAR annotation?

LiDAR annotation is the process of labeling 3D point cloud data captured by a robot's LiDAR sensor, so perception and navigation models can detect, classify, and track objects and free space around it.

• AV LiDAR annotation trains a car to understand an open road at speed.
• Robotics LiDAR annotation trains a machine to understand a tight, cluttered space it's about to physically interact with.

That distinction changes everything downstream: the environment, the sensor mix, and how much annotation errors actually cost.

Robots make physical contact with their environment. They grasp objects. They navigate tight aisles inches from people. An autonomous vehicle mostly avoids things; a robot arm has to touch the right thing at the right moment. That means an annotation error here doesn't just degrade a perception score; it can mean a collision, a dropped payload, or a missed grasp.

How does Robotics LiDAR differ from Autonomous Vehicle LiDAR?

Robotics and AV LiDAR annotation look similar on the surface; both involve point clouds, cuboids, and segmentation. But the operating conditions are different enough that they demand different annotation strategies, different QA thresholds, and often different tooling.

The takeaway: a workflow built for highway driving won't just transfer to a warehouse floor. Robotics teams need to design for close-range sparsity and multi-viewpoint fusion from day one, not bolt it on later.

Core Annotation Types for Robotic Point Cloud Data

Robotics point cloud annotation draws on the same core techniques as any LiDAR project , but each one gets applied with robotics-specific priorities in mind.

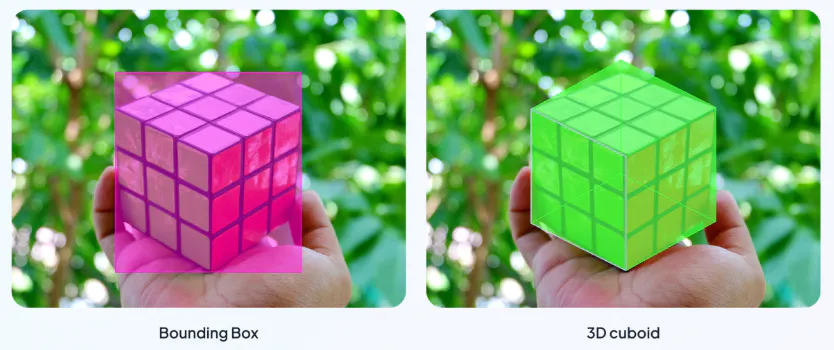

3D Cuboid / Bounding Box Annotation

• Used for object detection: obstacles, pallets, inventory, people
• Needs to hold up at close range, where objects are only partially visible in the point cloud

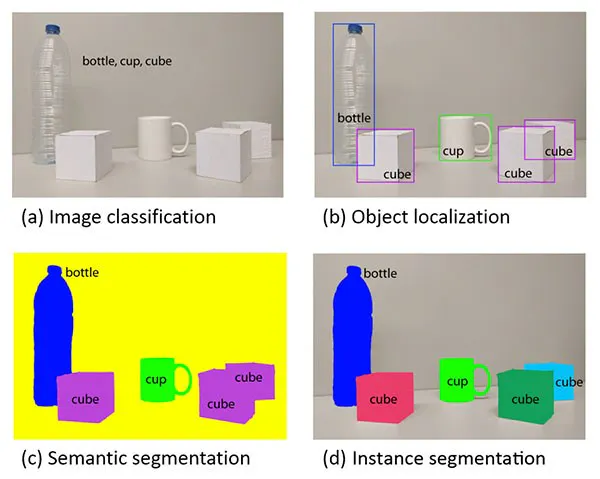

Semantic and Instance Segmentation

• Separates free space, floor, and static infrastructure (shelving, walls) from dynamic objects
• Critical for path planning , a robot needs to know exactly where it can't go, not just what it can see

Object Tracking Across Frames

• Maintains consistent track IDs for moving obstacles: people, forklifts, other robots
• Enables velocity estimation, which feeds directly into collision avoidance decisions

3D Polylines and Polygons

• Used for marking navigable paths, lane-like guides in structured facilities, and irregular obstacle boundaries that a cuboid can't capture well

Technical Challenges in LiDAR Annotation

Robotics inherits every hard problem general LiDAR annotation has , it just experiences them differently at close range.

1. Data Density and Scale

• A single LiDAR sensor generates millions of data points every second, creating heavy storage and compute loads
• Dense 3D geometry takes annotators real time to navigate, segment, and bound accurately

1. Sparsity and Distance

• Point density drops sharply the farther an object is from the sensor, making distant objects look fuzzy or incomplete
• Small objects , cables, debris, tools on the floor , are easy to miss when points are spread thin

1. Occlusions and Environmental Noise

• Partially blocked or overlapping objects force annotators to infer true dimensions from context
• Environmental artifacts (rain, snow, fog, dust) create false-positive returns that mimic real obstacles

1. Temporal and Multi-Sensor Alignment

• Maintaining consistent object IDs and bounding box sizes across sequential frames is essential for accurate velocity tracking
• Aligning LiDAR with RGB cameras or radar requires strict time and spatial synchronization , get this wrong, and you get conflicting training labels

Sensor Fusion for Robotics LiDAR Annotation

Sensor fusion is where robotics LiDAR annotation diverges most sharply from AV. Here's how it works:

• Data synchronization: Aligning timestamps across LiDAR sweeps, cameras, and radar so moving objects stay consistent across frames
• Calibration: Using precise extrinsic and intrinsic parameters to project 3D point data onto 2D image coordinates, and vice versa
• Unified labeling: Drawing cuboids, polylines, or segmentation once, so labels apply consistently across every sensor modality at once

Why single-camera fusion (the AV model) doesn't work for robots

• Autonomous Vehicle data fusion is typically one LiDAR paired with one forward camera stack
• Robots typically need base LiDAR + arm-mounted camera + gripper camera, and sometimes radar , all time-synced simultaneously
• More viewpoints means more room for misalignment if the fusion pipeline isn't built for it

Calibration and time synchronization drift across viewpoints

• Robotics fusion needs millisecond-level alignment across every sensor
• Drift at this level isn't a minor accuracy issue , it can mean a mislabeled grasp event or an obstacle that appears in the wrong place at the wrong time

Cross-sensor verification during annotation

• Sparse point cloud clusters are often ambiguous on their own
• Camera views let annotators confirm what a sparse cluster of points actually is , the same way AV annotation uses camera fusion, just across more viewpoints

A Practical LiDAR Annotation Workflow for Robotics Teams

Getting from raw sensor data to model-ready labels takes a consistent, repeatable pipeline. Here's what that looks like in practice.

1. Data Ingestion and Preprocessing

• Stream synchronization: Align raw LiDAR scans with timestamps from secondary sensors like RGB cameras, radar, and IMU data
• Noise filtering: Strip out ambient outlier points, dust, and ground-return artifacts using automated scripts
• Ego-pose adjustment: Normalize coordinate frames based on the robot's own movement and orientation logs

2. Multi-Sensor Calibration and Sync

• Confirm extrinsic/intrinsic calibration is holding across every viewpoint before annotation starts
• Re-verify sync at the start of each new session or after any hardware changes

3. Select the Appropriate Annotation Type

• Choose cuboid, segmentation, or tracking based on the use case , see Core Annotation Types above
• Most robotics projects need a combination of all three, applied consistently across a scene

4. Quality Assurance

• Use consensus scoring and IoU thresholds to catch inconsistent labels
• Build in dedicated review workflows for safety-critical labels , grasp zones, human-proximity obstacles, dynamic tracking

5. Export and Model Feedback Loop

• Export in the format your training pipeline expects
• Feed real-world edge cases (missed detections, near-misses) back into re-annotation to close the loop

Use Cases: Where LiDAR Annotation for Robotics Matters Most

Warehouse and Logistics Robots

• Obstacle detection around pallets, racking, and inventory
• Dynamic tracking of humans and forklifts sharing the same floor space
• High-volume, repeatable environments make this the fastest-scaling use case

Mobile Manipulation Robots

• Gripper-proximity annotation for precise grasp events
• LiDAR obstacle context combined with arm-camera data to confirm what's actually in reach

Inspection and Quadruped Robots

• Navigating uneven or complex terrain (stairs, pipe runs, industrial floors)
• Infrastructure inspection use cases where the robot needs to identify wear, damage, or obstruction, not just avoid it

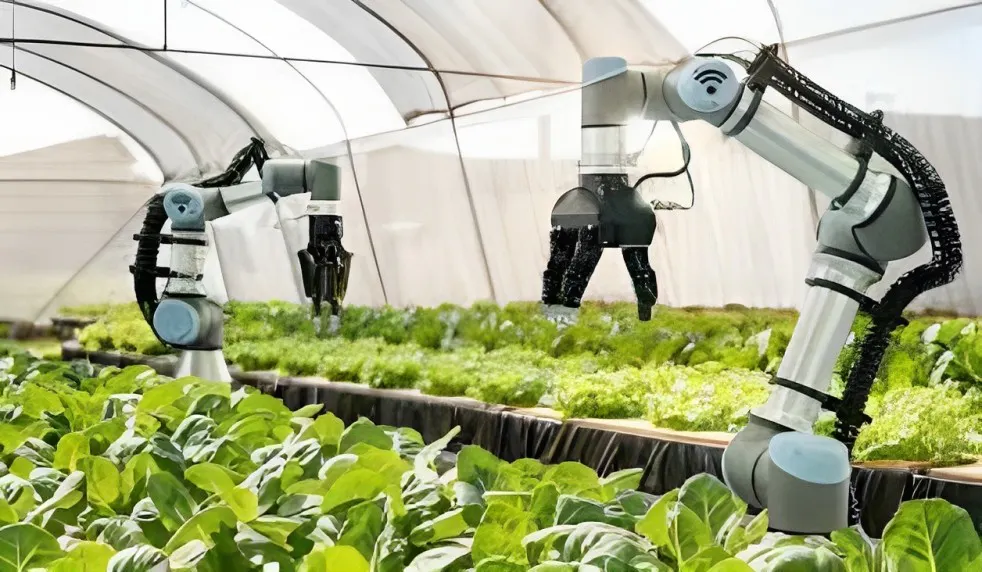

Agricultural and Outdoor Service Robots

• Semi-structured outdoor environments , a middle ground between open-road AV and indoor warehouse conditions
• Requires handling variable lighting, terrain,

Choosing a LiDAR Annotation Tool for Robotics

The right tool matters more in robotics than it does in AV setting, because most 3D annotation platforms were built for driving scenarios first , and close-range indoor point clouds expose their limits fast.

When evaluating a platform, look for:

• 3D point cloud visualization you can pan, zoom, and rotate freely, so annotators can verify geometry from every angle
• Full annotation type support , semantic labels, 3D bounding boxes, and segmentation, not just one or two
• Multi-frame navigation for temporal consistency, so annotators can move smoothly through sequential frames without losing track of objects
• Frame stacking / sensor fusion support for LiDAR plus camera (and radar, where relevant), giving annotators the added context that close-range point clouds often lack on their own

Key Takeaways

1. Indoor LiDAR annotation deals with occlusion from shelving, equipment, and people at ranges under 5 meters , a fundamentally different sparsity problem than highway-range AV LiDAR.
2. Sensor fusion in robotics usually means reconciling three or more viewpoints (base LiDAR, arm camera, gripper camera), not a single camera-LiDAR pair.
3. Reflective and transparent warehouse materials , shrink wrap, metal racking, glass , generate noisy returns that need handling at the annotation stage, not just the sensor stage.
4. Dynamic obstacle tracking (humans, forklifts, other robots) requires temporal consistency annotation, not single-frame labeling.
5. Choosing the right labeling platform matters more here than in AV. Most 3D tools are built AV-first and don't handle close-range indoor point clouds well.
