Sensor Fusion Data Annotation: How to Label Multi-Sensor Robotics Data
Forward Deployed Engineer at Encord
TLDR; Sensor fusion data annotation is the process of labeling camera, lidar, radar, and ultrasonic data together, as one time-synchronized, calibrated unit, rather than annotating each sensor stream in isolation. It's harder than single-sensor annotation because it depends on precise time synchronization and spatial calibration before a single label can be drawn. The workflow runs from capture through synchronization, calibration, cross-modality labeling, and quality control, typically supported by 2D and 3D benchmark datasets. Encord supports this workflow quite well with 3D Scenes that bind multi-sensor streams into one calibrated unit, native ingestion of raw sensor formats, model-assisted pre-labeling, and cross-sensor review tooling.
Physical AI systems such as autonomous vehicles, delivery robots, drones, humanoids, don't perceive the world through a single sense. They rely on multiple sensors working together, each compensating for the others' blind spots. Cameras alone struggle in low light. Lidar alone can't read a stop sign. Radar alone can't tell a plastic bag from a pedestrian at a distance. Fusing these modalities is what makes robust perception possible, and it's an active, well-documented area of research (Yeong et al.,2021) provide an end-to-end review of the sensor and calibration requirements behind fusion-based object detection in autonomous vehicles, while more recent work continues to benchmark fusion architectures against real-world driving data (Qian et al., 2025).
But a fusion model is only as good as the ground truth it's trained on. Before any of this technology reaches a road, a warehouse floor, or a surgical suite, someone has to label the data accurately, consistently, and across every sensor at once. That's sensor fusion data annotation, and it's a meaningfully different discipline from labeling a single image or video.
Why sensor fusion annotation matters for Physical AI and robotics
Every Physical AI system that combines sensors to perceive its environment depends on multi-sensor training data to learn from. If the underlying annotations are inconsistent between camera and lidar, or between lidar and radar, that inconsistency doesn't stay contained; it translates into the model, showing up as misjudged distances, dropped objects, or false detections in production. Getting the annotation layer absolutely right is a prerequisite for getting the perception layer right.
What is sensor fusion?
Sensor fusion is the process of combining data from multiple, often complementary, sensors into a single, more reliable representation of the surrounding environment than any one sensor could produce alone. In autonomous vehicles, this typically means merging camera, lidar, and radar; in robotics, it can also include IMU, tactile, or acoustic sensors. The goal is to reduce uncertainty and cover the blind spots that any single modality has on its own (Yeong et al., 2021).
What is sensor fusion annotation?
Sensor fusion annotation is the process of labeling data from two or more sensor modalities, such as camera, lidar, and radar, within a single, time-synchronised, calibrated workflow, so that one object receives a consistent label across every sensor that observed it. Unlike annotating each sensor feed separately and merging the results afterwards, fusion annotation treats the multi-sensor scene as one unit from the start.
The Key Difference: Sensor fusion vs. sensor fusion annotation
Sensor fusion is the engineering discipline of combining sensor outputs, typically inside a perception algorithm at inference time. Sensor fusion annotation is the upstream data-labeling process that produces the ground truth those algorithms are trained and evaluated against. One happens on the vehicle or robot; the other happens in the data pipeline before a model ever sees the data.
Types of sensors used in sensor fusion:
Autonomous vehicles and robots rarely rely on a single sensor to understand their surroundings, each sensor type sees the world differently, and each comes with its own blind spots. The table below summarizes the four sensor types most commonly combined in sensor fusion, along with what each one is best at and where it falls short.
| Sensor | How it works | Strengths | Limitations |
| Camera | Captures dense RGB imagery with fine texture, color, and semantic detail | Strongest sensor for classification tasks like reading signs or identifying object type | Degrades in low light, glare, fog, or heavy rain |
| LiDAR | Emits laser pulses and measures return time to build an accurate 3D point cloud of the surrounding geometry | Performs well regardless of lighting | Produces sparse returns at range; degraded by rain, snow, or dust |
| Radar | Measures range and velocity using radio waves | Largely unaffected by weather or lighting | Coarse spatial resolution, weak at distinguishing small or closely spaced objects |
| Ultrasonic sensors | Uses high-frequency sound waves to detect nearby objects | Inexpensive and reliable at close range; well suited to parking assistance and low-speed obstacle detection | Not suited to detecting objects at speed or distance |
No single sensor covers every condition a Physical AI system encounters, which is exactly why sensor fusion exists, combining these modalities lets their strengths offset each other's limitations, producing a more complete and reliable picture of the environment than any one sensor could deliver alone.
Categories of sensor fusion
Sensor fusion isn't a single, uniform process, how sensors relate to each other, and how their data actually gets routed and processed, both shape the architecture of a fusion system.
The table below breaks down the three ways sensors can relate to one another when fused.
{{table(table2)}}
Beyond how sensors relate to each other, fusion architectures also differ in how sensor data physically moves through the system before it's combined:
| Communication scheme | How it works |
| Centralized | Raw data from every sensor is sent to one processor, which performs the fusion |
| Decentralized | Each sensor node processes its own data and shares partial results with the others |
| Distributed | Data is fused across multiple cooperating nodes without a single central point |
How sensor fusion works in practice
1. Capture
Raw data streams are recorded simultaneously from every sensor on the platform, camera frames, lidar point clouds, radar returns, each with its own timestamp and native format.
2. Time synchronization
Sensors capture data at different rates and with different latencies, their outputs have to be aligned to a common clock before Sensor Fusion is possible. Even small timing offsets between a fast camera frame rate and a slower lidar sweep can misplace a moving object by a meaningful margin.
3. Calibration

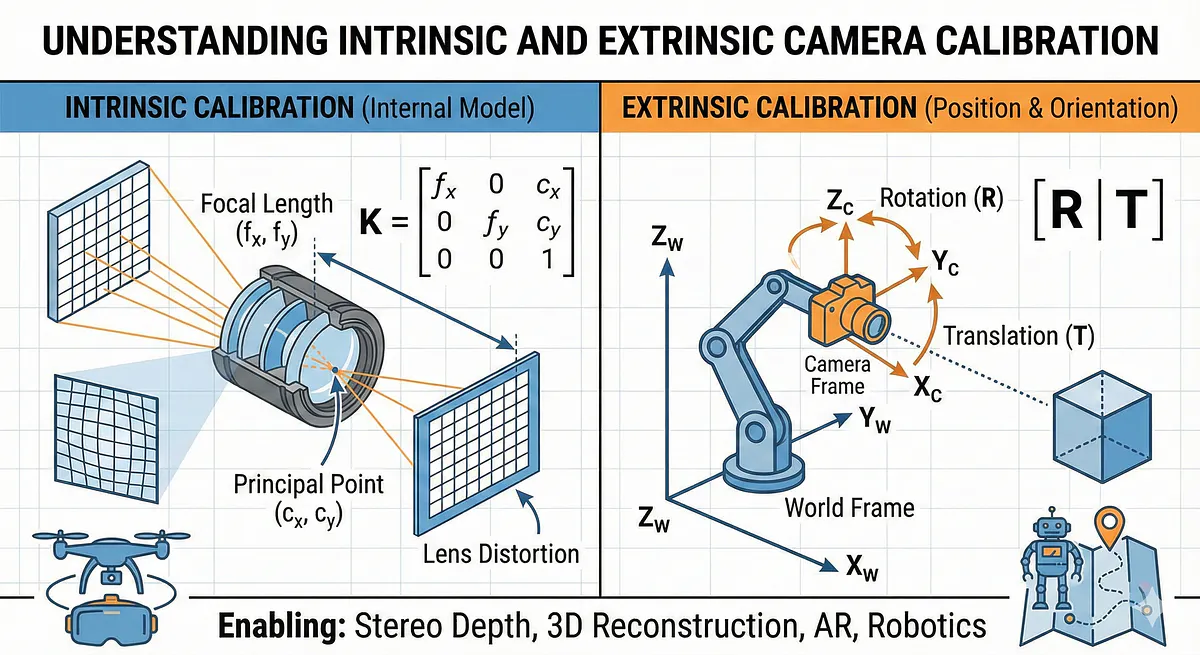

Calibration establishes exactly how each sensor is positioned and oriented relative to the others (extrinsic calibration) and how it interprets its own raw signal (intrinsic calibration), including the specific lens distortion model a camera uses, whether pinhole, radial, Brown-Conrady, or fisheye.
Accurate sensor fusion depends on getting this calibration right first; it's what makes it possible to propagate a single label across sensors and modalities.
4. Transformation and projection
Once calibrated, points and detections from one sensor's coordinate frame are transformed into a shared reference frame, world, ego, or sensor frame, so that a lidar point and a camera pixel can be compared directly.
5. Fusion logic
Finally, the fusion algorithm combines the aligned, transformed data, at the raw data level, the feature level, or the decision level, to produce a single, unified output such as a fused 3D detection.
2D and 3D sensor fusion data annotation
What is 2D sensor fusion annotation?
2D sensor fusion annotation applies labels, bounding boxes, polygons, segmentation masks, to camera imagery in a way that stays consistent with corresponding labels in other sensor modalities, such as a matching cuboid in the lidar point cloud.
What is 3D sensor fusion annotation?
3D sensor fusion annotation labels objects directly in 3D space, typically as cuboids, segmentation, or keypoints within a lidar point cloud, and then propagates or verifies that label against camera and radar data from the same scene.
Common benchmark datasets (nuScenes, KITTI, Waymo)
- nuScenes was the first public dataset to include a full autonomous-vehicle sensor suite, six cameras, five radars, and one lidar, across 1,000 annotated driving scenes.
- KITTI is one of the earliest and most widely cited benchmarks, paired stereo cameras with a Velodyne lidar scanner to create benchmarks for stereo, optical flow, and 3D object detection.
- The Waymo Open Dataset extended this further with a large-scale, multi-sensor dataset built specifically to test perception model scalability.
How to annotate 2D and 3D sensor fusion data
Cross-modality labeling technique
Cross-modality labeling means annotating one physical object once, then propagating that label across every sensor that captured it, drawing a cuboid in the lidar point cloud and having it project accurately onto the corresponding camera frame, rather than re-labeling the same object separately in each modality.
Annotation workflow step-by-step
- Ingest raw, time-synchronized sensor streams without manual reformatting.
- Apply or confirm calibration parameters across all sensors in the scene.
- Label the primary modality (commonly the lidar point cloud for 3D tasks).
- Propagate or verify the label in the remaining modalities (camera, radar).
- Track object IDs consistently across frames for temporal sequences.
- Run quality checks before the labeled scene moves downstream to training.
Manual vs. AI-assisted (automated) annotation
Manual annotation, where a person draws every cuboid, mask, or box from scratch, doesn't scale to the volume multi-sensor pipelines generate. AI-assisted annotation addresses this by having a model pre-label objects , using techniques like automated tracking and segment-anything-style object proposals, so annotators confirm and correct rather than draw from zero, which is where most of the throughput gains in modern annotation platforms come from.
AI-Assisted Labeling with Encord
Quality control and accuracy in multi-sensor annotation
Cross-modality consistency checks
After annotation, consistency checks verify that labels agree across sensors, that the cuboid drawn in the lidar point cloud actually aligns with the object's position in the camera frame, and that an object tracked across frames keeps a stable identity. This is a verification step performed on completed labels, distinct from the labeling technique itself.
Handling occlusion and sensor dropout
Objects are frequently occluded in one modality but visible in another — a pedestrian partly hidden behind a parked car in the camera view may still be visible in the lidar return. Robust QC processes are built to reconcile these partial views rather than treating a dropout in one sensor as missing data across the board.
Toolkits and frameworks for sensor fusion
- ROS (Robot Operating System): the messaging and driver infrastructure most robotics and AV teams use to record and replay multi-sensor data.

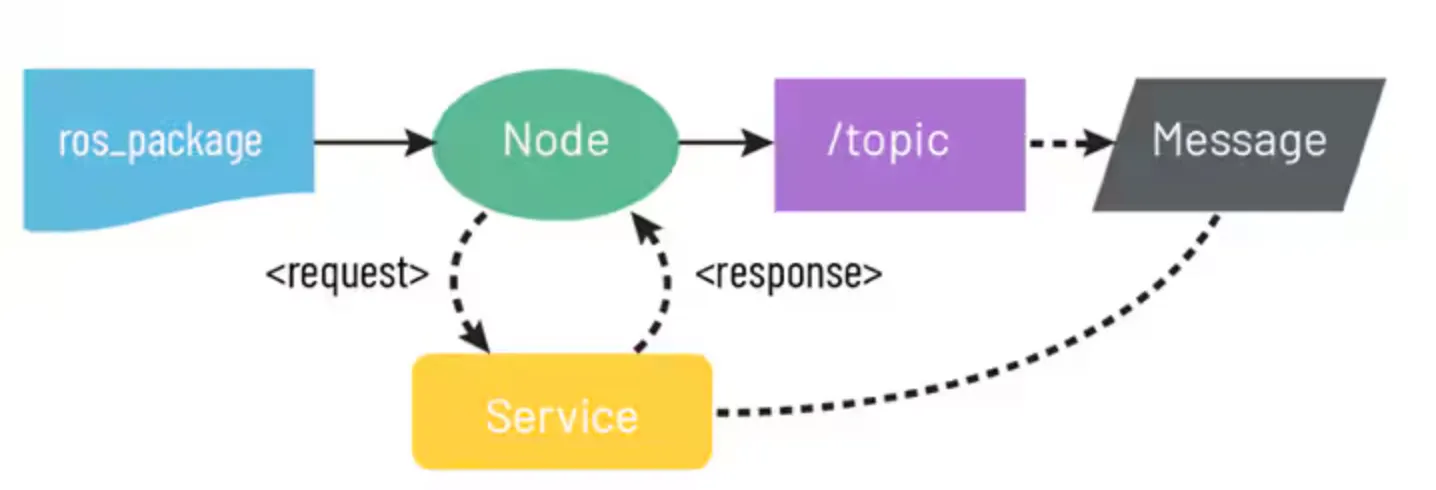

Basic ROS data flow (Source)

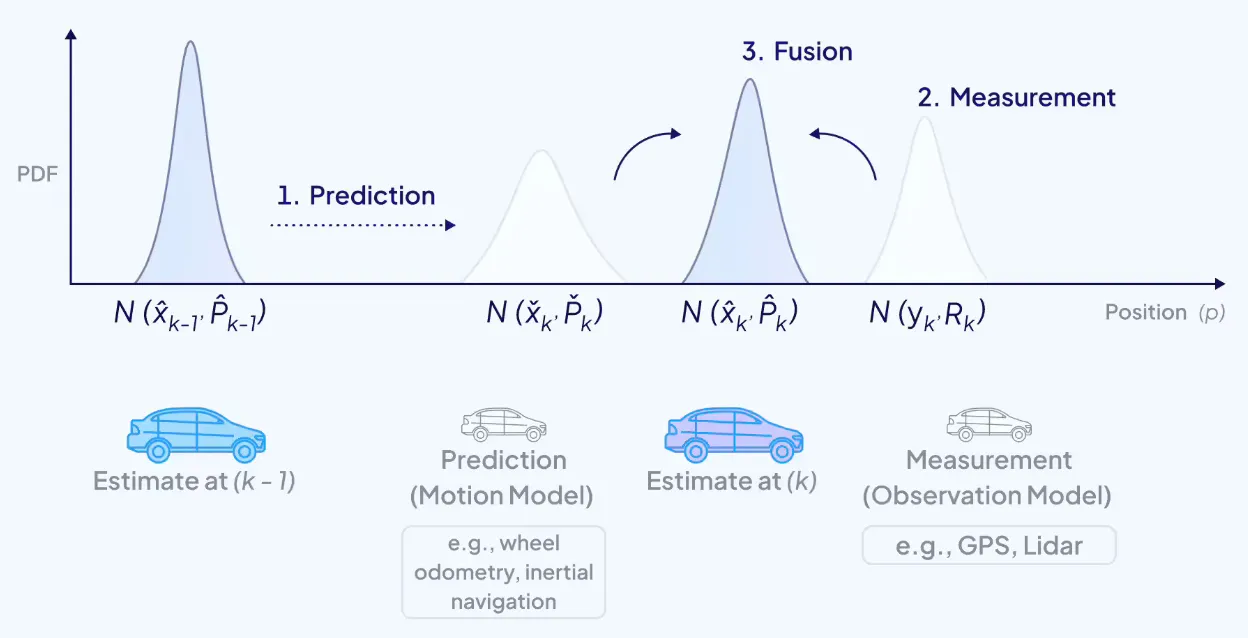

- Kalman and extended Kalman filters: the standard statistical approach for fusing noisy sensor measurements over time into a stable state estimate, tracing back to Kalman's (1960) original formulation.
The Kalman Filter (Source)

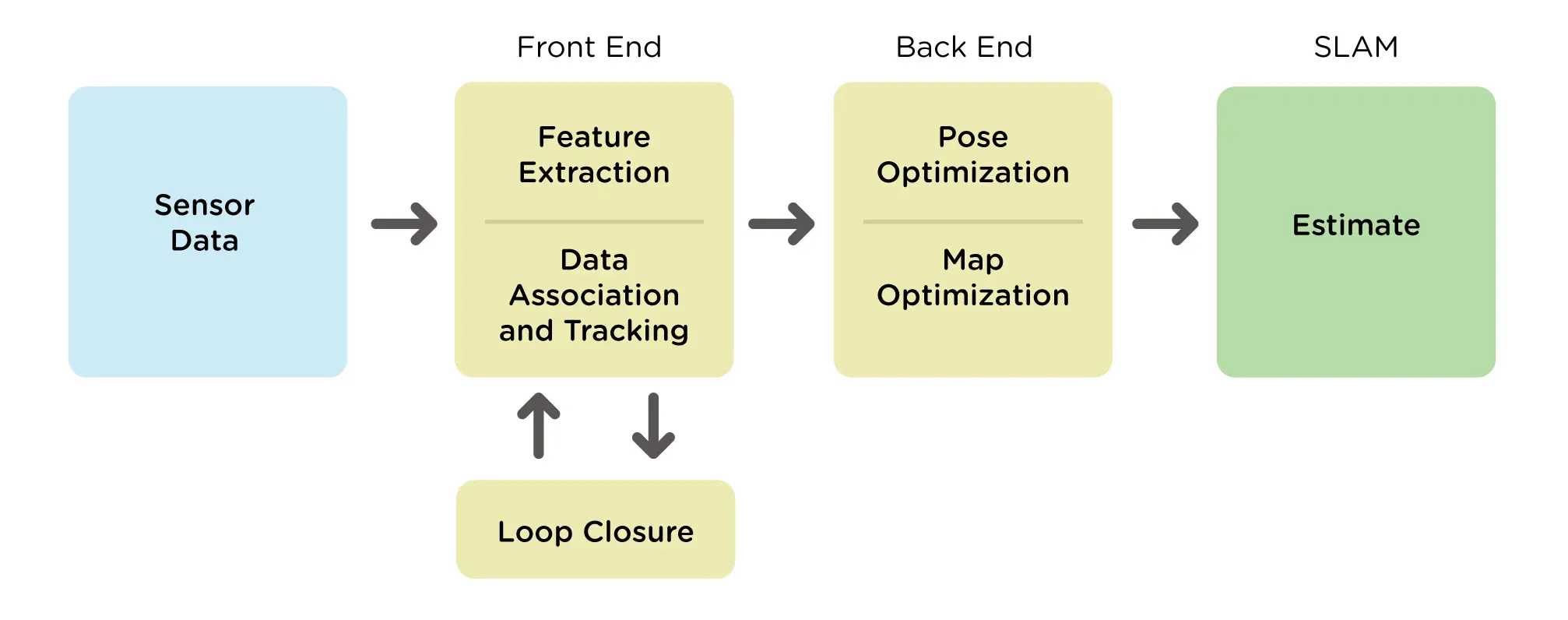

- SLAM (Simultaneous Localization and Mapping): frameworks that fuse sensor data to build a map of the environment while tracking the platform's position within it, an area with three decades of active research behind it (Cadena et al., 2016)
Applications and Use-Cased for sensor fusion
1. Autonomous vehicles and ADAS
- Sensors: lidar, camera, radar
- Fuses long-range detection with fine-grained classification for safe navigation.
2. Drones
- Sensors: camera, IMU, GPS
- Combines visual and inertial data for stable flight and obstacle avoidance.
3. Robotics
- Sensors: camera, lidar, tactile/force sensors
- Enables navigation and manipulation in unstructured, dynamic environments.
4. Industrial automation
- Sensors: camera, lidar, proximity sensors
- Supports quality inspection and safe human-robot collaboration on the factory floor. Learn more about industrial and manufacturing use cases.

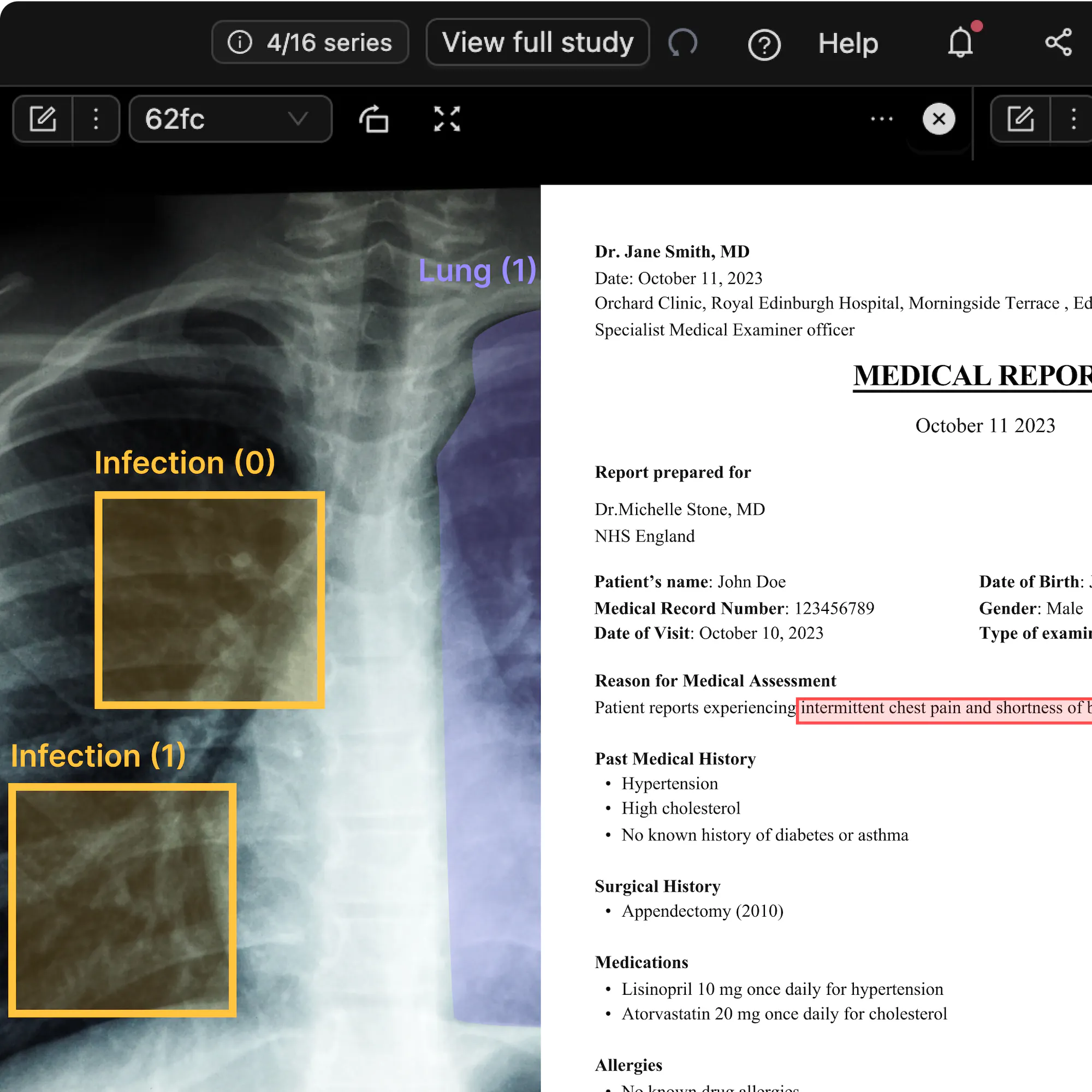

5. Medical imaging
- Sensors: multi-modal imaging devices (e.g. CT, MRI, ultrasound)
- Combines complementary imaging modalities for more complete diagnostic context. See our healthcare AI solutions.

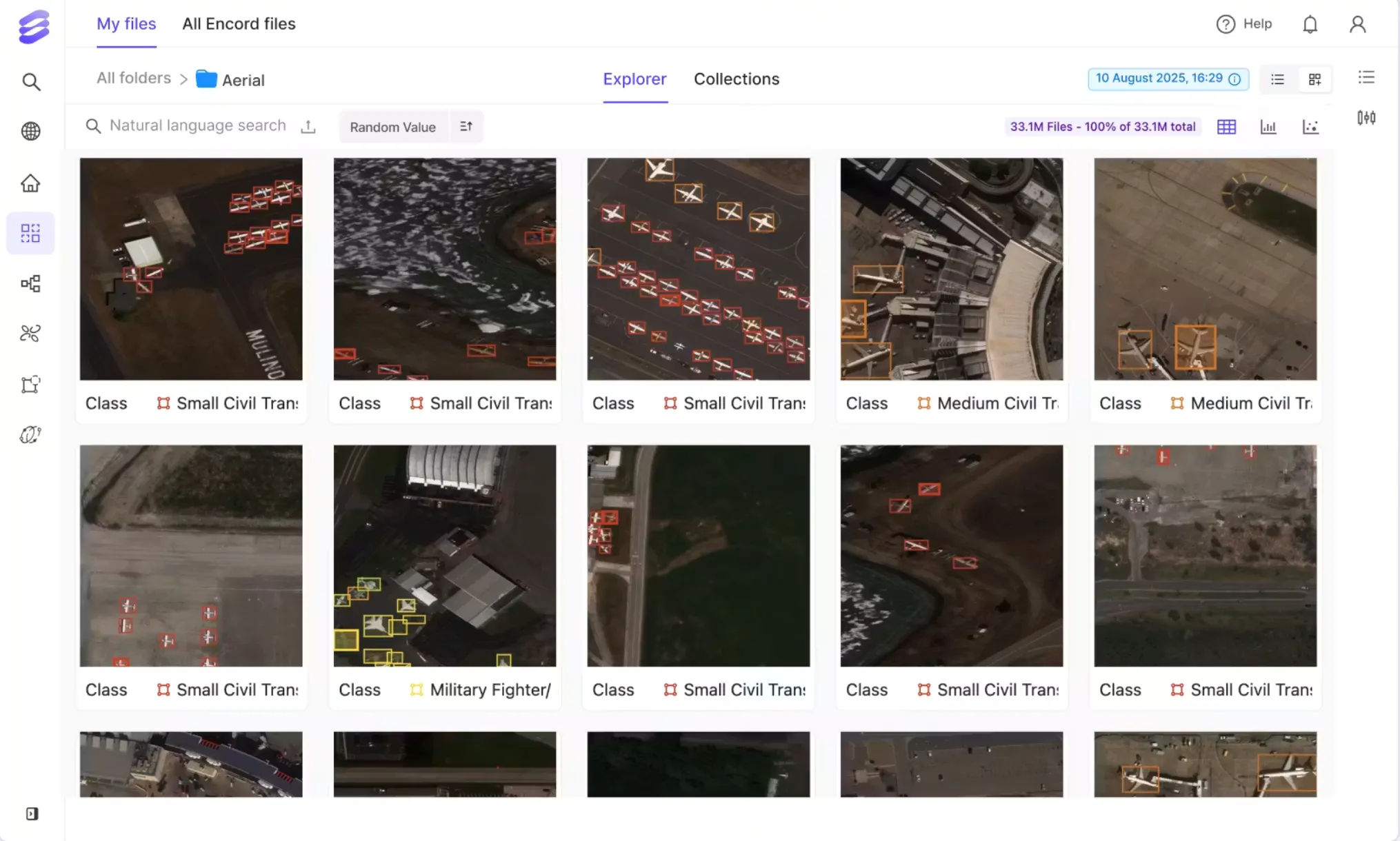

6. Defense and security
- Sensors: camera, lidar, radar, thermal
- Supports surveillance and situational awareness across a wider range of conditions. Explore our defense AI capabilities.
Challenges and limitations of sensor fusion
Synchronization and calibration drift
Sensors that were correctly calibrated at deployment can drift out of alignment over time due to vibration, temperature change, or mechanical wear, quietly degrading fusion accuracy until it's recalibrated.
Cross-modality labeling complexity
Keeping a single object consistently and correctly labeled across sensors with very different data structures, pixels, points, radar returns, takes purpose-built tooling; generic single-modality annotation tools tend to break down here.
Scaling annotation cost and volume
A single hour of multi-sensor driving data can generate an enormous volume of raw sensor output, and a full autonomous vehicle test fleet compounds that across thousands of hours. Annotating that volume manually, sensor by sensor, becomes a cost and throughput bottleneck long before it becomes a modeling problem.
How Encord supports sensor fusion annotation
Encord's platform is built around one idea: multi-sensor data should be treated as one calibrated scene, not a set of separate files to reconcile later.
Here's how that plays out across the annotation workflow:
Calibration foundation
- A 3D Scene in Encord binds timestamped point clouds, images, and camera-parameter streams into a single time-synchronized unit, with world, ego, and sensor frames of reference.
- Supports camera intrinsics and extrinsics across pinhole, radial, Brown-Conrady, fisheye, and OpenCV rational-polynomial distortion models.
- This is exactly the calibration foundation the "How sensor fusion works in practice" section above described as a prerequisite for propagating labels across sensors.
- Raw sensor data streams directly into Encord in the formats teams already use, MCAP, ROS bag, ROS2 .db3, PCD, PLY, LAS/LAZ, E57, nuScenes, and KITTI.
- No separate preprocessing or conversion step required.
- Supports point clouds of up to roughly 20 million points per scene.
- Objects can arrive already pre-labeled for an annotator to confirm or correct, rather than draw from scratch.
- Automation handles the first pass, so human judgment gets spent on review and edge cases instead of repetitive drawing.
Quality control
- Human-in-the-loop review interface gives reviewers cross-sensor comparison and multi-frame context in one view.
- Backed by consensus scoring and disagreement analytics designed to catch label drift before it compounds across a sequence.
- Directly answers the cross-modality consistency and scaling challenges covered earlier in this guide.
Key Takeaways
- Sensor fusion annotation labels multiple sensor modalities together in one calibrated, time-synchronized workflow, it is not the same as annotating each sensor separately and merging results afterward.
- Calibration (intrinsic and extrinsic) and time synchronization have to happen before annotation, not after, get these wrong and every downstream label inherits the error.
- 2D and 3D annotation solve different problems: 2D labels camera imagery, 3D labels point clouds, and fusion annotation keeps both consistent for the same object.
- Public benchmarks like nuScenes, KITTI, and the Waymo Open Dataset give teams a reference point for what production-grade multi-sensor annotation looks like.
- Quality control for fusion annotation means checking cross-sensor consistency and handling occlusion, not just reviewing each sensor's labels in isolation.
- The biggest practical bottleneck isn't the algorithm, it's scaling accurate annotation across the sheer volume of multi-sensor data Physical AI systems generate.
